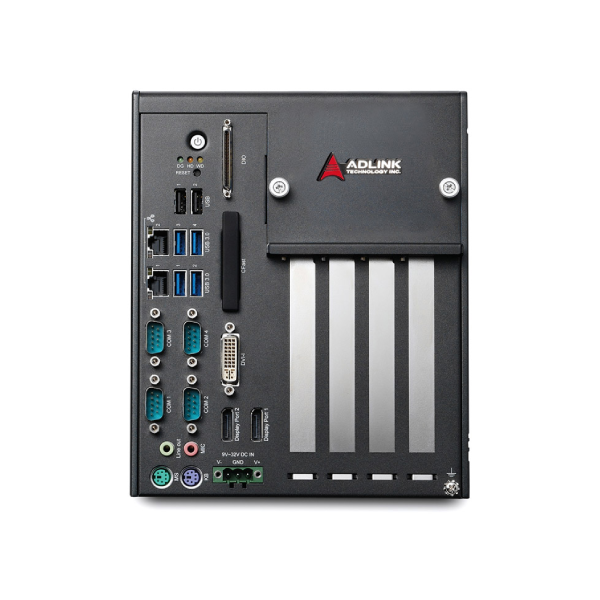

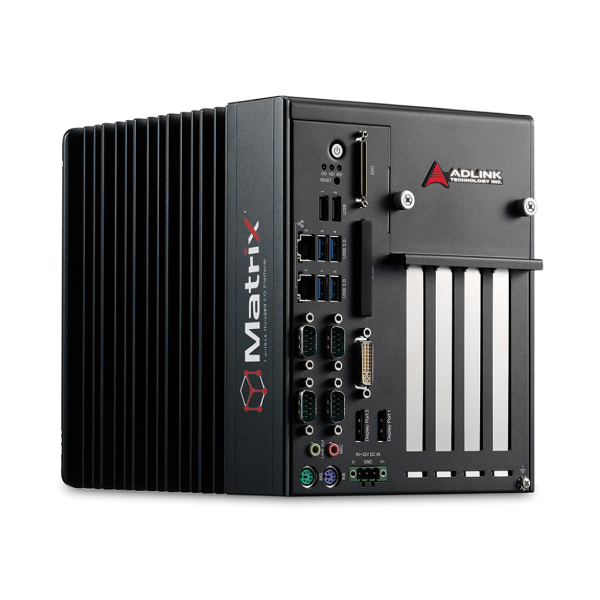

– Supports 3rd generation Intel® Core™ i7/i5/i3/Celeron® processor + QM77 chipset
– 2 x DDR3 SO-DIMM socket, support up to 16GB memory

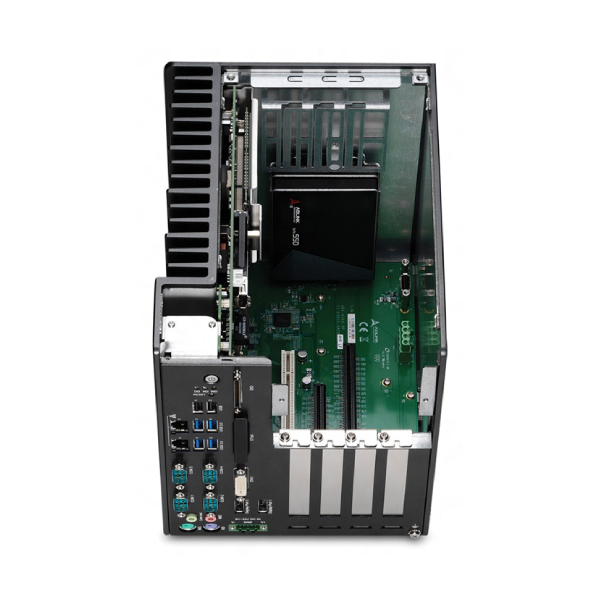

– 1 PCI +2 PCIe x8 slots or 1 PCI + 1 PCIe x16 (MXC-6300 series), 1 PCI + 1 PCIe x16 (MXC-6310 series), 3 PCI + 1 PCIe x16 (MXC-6320 series)
– 3 independent display: 2 DisplayPort + 1 DVI-I
– 2 Intel® GbE ports with teaming function, Intel® iAMT 8.0
– 6 external USB ports (4 USB 3.0 + 2 USB 2.0) + 1 internal USB 2.0, 2 CFast sockets, onboard SATA III for 2×2.5″ HDD/SSD installation, SATA 6Gb/s and RAID 0,1 support
– Rugged, up to -20°C to 60°C (-4°F to 140°F) fanless operation (w/ industrial SSD)
