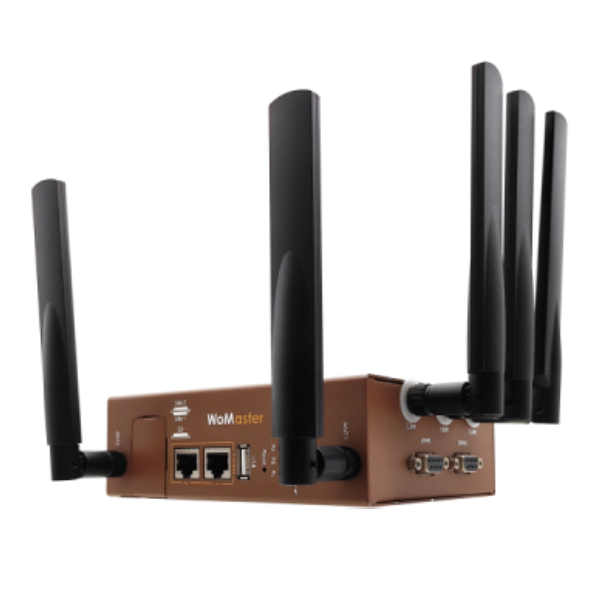

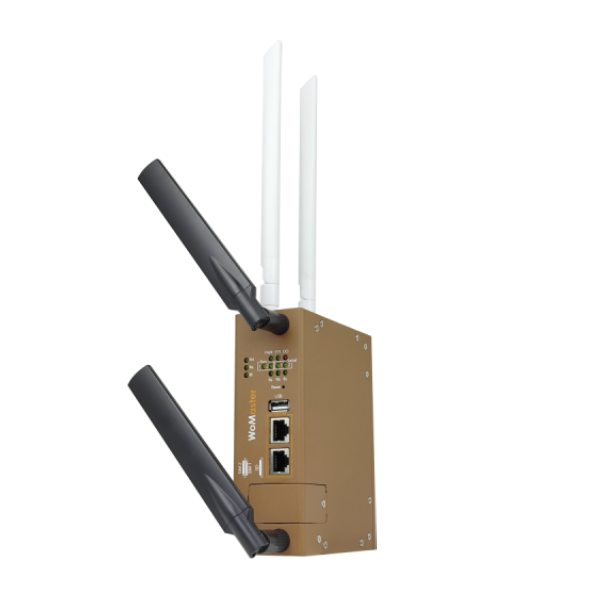

High-Speed Dual 4G LTE & LTE + Wi-Fi 6 Network
– Dual Core High-Speed Processor
– LTE Cat.4, 2×2 MIMO, 150M downlink and 50M uplink
– 4G/3G/2G full cellular network compatibility
– Dual SIM Dual Active ensures dual LTE redundancy with non-stop carrier switch time
– Support GPS for location services (model with GPS)
– Support LTE + WLAN 6 network, features IEEE 802.11ax and backward compatible 802.11ac/n/g/b/a
– Dual Band Dual Concurrent 5GHz + 2.4GHz Wi-Fi frequency for local coverage, up to 1774(1200Mbps + 574Mbps) PHY Rate capacity
– Support OFDMA, Downlink/Uplink MU-MIMO, BSS Coloring, up to 80MHz channel bandwidth, WLAN AP and Client mode
– 802.11r Fast Roaming
Serial Communication & High Throughput Data Switching
– Serial port with RS232/422/485 full functions for serial over LTE/Wi-Fi/Ethernet data switching
– 2-port Gigabit Ethernet supports routing and bridging mode
– Close to wire-speed NAT routing performance
– Hardware NAT for CPU utilization saving
Dynamic Routing with Redundancy Protection
– RIPv1&v2, OSPFv1&v2 for intra-domain routing within an autonomous system
– Efficient unicast/multicast* static routing
– VRRP guarantees sustainable routing in a single point of failure
Rugged Design for Wayside Surveillance, ITS Application
– EN50121-4 railway trackside EMC compliant for Industrial IoT, ITS applications
– Effective heat dissipation design for operating in -40~70oC environments
– CE Marking
– IEC61000-6-2/IEC61000-6-4 heavy industrial EMC compliance
Enhanced Cyber Security & Redundancy
– Firewall for inbound/outbound traffic
– OpenVPN (server/client), and IPSec support AES256 for secure remote connection (not available for EurAsEC countries)
– L2TP with PPP, PAP, CHAP(LCP, IPCP)
– GRE tunnel
– HTTPs/SSH secure login
– TACACS+ multi-user authentication for privileged user management
– Cellular to WAN redundancy, dual SIM backup
– RSTP spanning tree protocol*
Industrial IoT LAN & Cloud Management
– Embedded Amazon AWS & Microsoft Azure cloud service
– Various configuration paths, including CGI WebGUI, CLI, SNMP and RMON*
– 1:1 NAT, port forwarding and NAPT for local traffic protection
– Support SNMPv3 and entity-MIB (RFC4133), MIB II (RFC1213)
– NTP v3 time management
– WoMaster Software Utilities
・NetMaster: Network Management System with VLAN visualization* and ERPS* Ring
・ViewMaster: Configuration Management
・ThingMaster OTA: Realtime map showing the status, signal strength, location of the remote devices, over-the-air batch device registration, configuration and firmware upgrade*, alerts on critical events to prevent downtime
– Support MQTTS/CoAP protocol, ready to use AWS/Azure and Private Cloud Agent for cloud management
– USB for easy field configuration and firmware update
– Diagnostic tool includes Ping, TFTP, SNMP Trap, E-mail Alert and System Log
